Rugged Enclosure

Rugged Enclosure

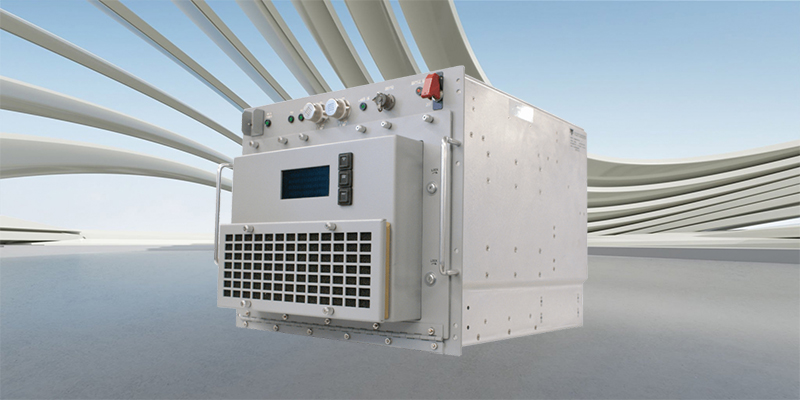

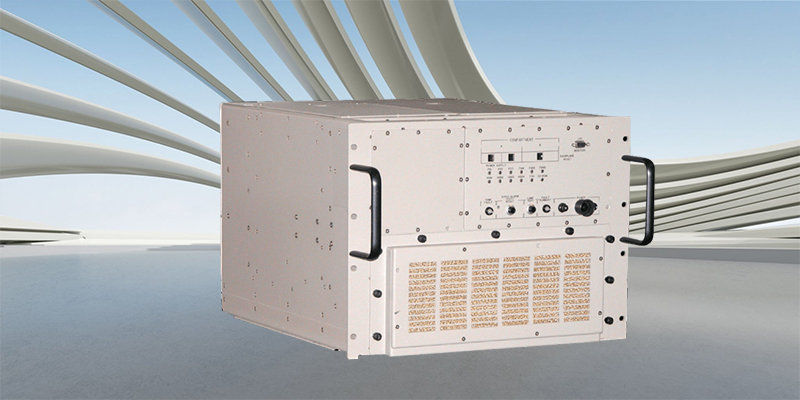

Our Rugged Enclosure is designed for use in harsh environments, such as ships, ground applications and other mobile platforms. It is compliant with MIL-STD-810F and MIL-STD-461E, and can withstand extreme temperatures, shock, vibration, and humidity. The chassis is also EMI/RFI shielded, and can be configured for AC or DC power input.

Features

  • IEEE 1101.10 Mechanical Standards
  • 3U, 6U (VXS/ OpenVPX/VPX/VME64x / cPCI) Backplane Options
  • 1U to 11U High Card Area
  • 2 to 21 Slots
  • Custom Specific Switch Controls and Indications
  • Forced Air Convection Cooled
  • AC / DC Input Power Supply
  • EMI/RFI Power Line Filtering
  • 19” Rack Mount Configurable
  • Upto 1000Watts PSU
  • Rear I/O Supported
  • Table top / Rack Mount, Desktop
  • Custom Specific Layout
  • MIL-D-38999 Connector Style
  • Environmental as per MIL-STD-810F / JSS 55555
  • Custom Design
  • Input transient as per MIL-STD-1275D
  • EMI / RFI Power line filtering
  • AC / DC Input PSU Options

Benefits

  • The rugged chassis provides a reliable and secure platform for mission-critical applications.
  • The chassis is designed to withstand the harshest environments, ensuring that your applications will continue to operate even in the most demanding conditions
  • The chassis is easy to configure and customize, making it the perfect solution for a wide range of applications.
